Building synthon spaces with combinatorial reactions

tutorial
documentation
A frequently requested tutorial part 2
Published

December 14, 2025

Last week’s blog post looked at using BRICS to build a synthon search space. This post builds on that and creates a search space using some combichem reactions from a set published by Hartenfeller et al.

from rdkit import Chem
from rdkit.Chem import Draw
from rdkit.Chem import rdChemReactions
from rdkit.Chem.Draw import IPythonConsole
from rdkit.Chem import rdSynthonSpaceSearch

import rdkit
print(rdkit.__version__)
2025.09.3

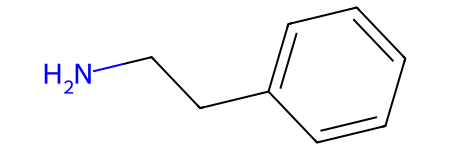

I’m going to use a set of Enamine building blocks that I have on my machine. I loaded these into a SubstructLibrary to make them fast and easy to search.

from rdkit.Chem import rdSubstructLibrary
import pickle
sslib = pickle.load(open('/scratch/Data/Enamine/real_reagents.sslib.pkl','rb'))

The first reaction

I’ll start with the Pictet-Spengler reaction from the Hartenfeller paper. It’s the first reaction in the SI for that paper and there’s something the name that I really like.

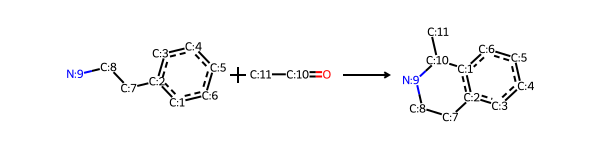

Here’s the definition of the reaction from the paper

sma = '[cH1:1]1:[c:2](-[CH2:7]-[CH2:8]-[NH2:9]):[c:3]:[c:4]:[c:5]:[c:6]:1.[#6:11]-[CH1;R0:10]=[OD1]>>[c:1]12:[c:2](-[CH2:7]-[CH2:8]-[NH1:9]-[C:10]-2(-[#6:11])):[c:3]:[c:4]:[c:5]:[c:6]:1'

rxn = rdChemReactions.ReactionFromSmarts(sma)
rxn

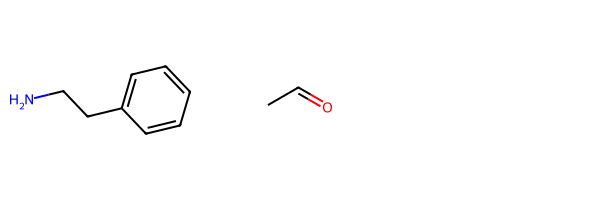

These are the two prototype educts from the SI:

r1 = Chem.MolFromSmiles('c1cc(CCN)ccc1')
r2 = Chem.MolFromSmiles('CC(=O)')
Draw.MolsToGridImage((r1,r2))

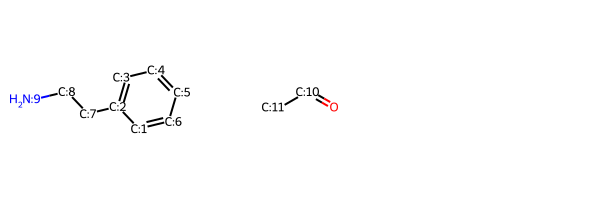

To make what’s going on in the reaction a bit easier to identify, here I add the atom map numbers from the reaction to the sample educts:

r_queries = [rxn.GetReactantTemplate(x) for x in range(rxn.GetNumReactantTemplates())]

for r,q in zip([r1,r2],r_queries):
    match = r.GetSubstructMatch(q)
    assert match
    for i,midx in enumerate(match):
        mnum = q.GetAtomWithIdx(i).GetAtomMapNum()
        if mnum:
            r.GetAtomWithIdx(midx).SetAtomMapNum(mnum)
Draw.MolsToGridImage((r1,r2))

r

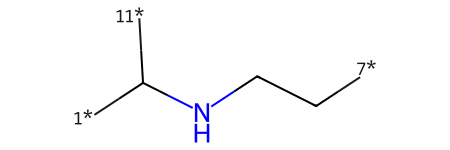

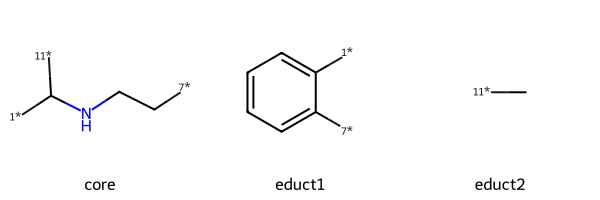

I’m going to encode the reaction as three synthons: a core and two “sidechains”

core = Chem.MolFromSmiles('[7*]CCNC([11*])[1*]')
core

Here’s what I get for the two sample educts:

chains = [Chem.MolFromSmiles(x) for x in ('[7*]c1ccccc1[1*]','C[11*]')]
Draw.MolsToGridImage([core,chains[0],chains[1]],legends=['core','educt1','educt2'])

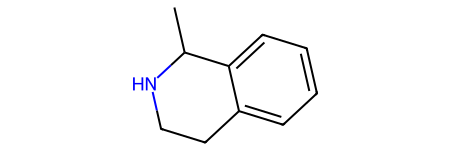

We can put these together using molzip (which is what the sython search code uses) to get the product:

tm = Chem.RWMol(core)
tm.InsertMol(chains[0])
tm.InsertMol(chains[1])

ps = Chem.MolzipParams()
ps.label = Chem.MolzipLabel.Isotope
tm = Chem.molzip(tm,ps)
tm

Now we need reactions that transform the building blocks that you would find in a chemical catalog into the synthons we need for the two educts.

I will do this using reactions.

r1_prep = rdChemReactions.ReactionFromSmarts('[cH1:1]1:[c:2](-[CH2:7]-[CH2:8]-[NH2:9]):[c:3]:[c:4]:[c:5]:[c:6]:1\
>>[1*]-[c:1]1:[c:2](-[7*])[c:3]:[c:4]:[c:5]:[c:6]1')
p = r1_prep.RunReactant(r1,0)
[15:59:19] mapped atoms in the reactants were not mapped in the products.
  unmapped numbers are: 7 8 9

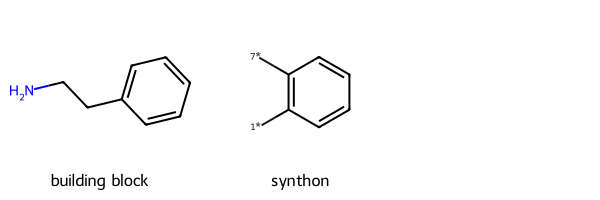

Draw.MolsToGridImage([r1,p[0][0]],legends=['building block','synthon'])

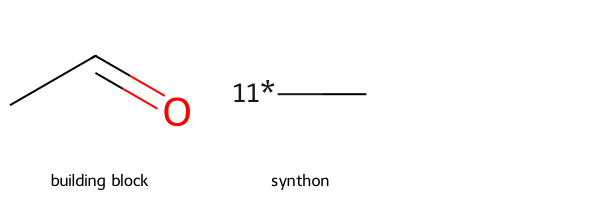

r2_prep = rdChemReactions.ReactionFromSmarts('[#6:11]-[CH1;R0:10]=[OD1]>>[#6:11]-[11*]')
p = r2_prep.RunReactant(r2,0)

Draw.MolsToGridImage([r2,p[0][0]],legends=['building block','synthon'])
[15:59:41] mapped atoms in the reactants were not mapped in the products.
  unmapped numbers are: 10

More complex reactions (see the next example) may have multiple cores. I want to try and have the code for creating the space be reasonably generic, so I’ll put the preparation reactions and core into a list:

r_queries = [rxn.GetReactantTemplate(x) for x in range(rxn.GetNumReactantTemplates())]
possibles = [(core,(r1_prep,r2_prep))]
def enumerate_synthons(possibles,outf,writeHeader=True,startIdx=1,nWritten=1):
    if writeHeader:
        outf.write('\t'.join(['SMILES','synton_id','synton#','reaction_id','release'])+'\n')
    for rxnidx,poss in enumerate(possibles,start=startIdx):
        # get the core and preparation reactions
        core,preps = poss
        # write out the core:
        outf.write(f'{Chem.MolToSmiles(core)}\t{nWritten}\t1\tr{rxnidx}\t1\n')

        # now prepare each of the sidechain synthons:
        nWritten += 1
        for ridx,prep in enumerate(preps):
            if not prep.GetNumProductTemplates():
                continue
            # find possible building blocks that could work here:
            poss = sslib.GetMatches(r_queries[ridx],maxResults=10000)
            print(rxnidx,ridx,len(poss),nWritten)
            seen = set()
            # now loop over those, prepare them, and write them to the output:
            for mol in (sslib.GetMol(x) for x in poss):
                # we use an R0 primitive in the query, so make sure
                # we have ring presence
                Chem.FastFindRings(mol)
                # run our prep reaction:
                ps = prep.RunReactant(mol,0)
                # write each product (in case there's more than one)
                for p in ps:
                    smi= Chem.MolToSmiles(p[0])
                    # don't write duplicates:
                    if smi in seen:
                        continue
                    outf.write(f'{smi}\t{nWritten}\t{ridx+2}\tr{rxnidx}\t1\n')
                    seen.add(smi)
                    nWritten += 1
            print('\t',nWritten)
    return rxnidx+1,nWritten

with open('./space1.txt','w+') as outf:
    nextRxn,nextIdx = enumerate_synthons(possibles,outf)


!head space1.txt
1 0 264 2
     333
1 1 4456 333
     4778
SMILES  synton_id   synton# reaction_id release
[1*]C([11*])NCC[7*] 1   1   r1  1
[1*]c1ccccc1[7*]    2   2   r1  1
[1*]c1cc(OC)ccc1[7*]    3   2   r1  1
[1*]c1cc(S(N)(=O)=O)ccc1[7*]    4   2   r1  1
[1*]c1cc(Cl)ccc1[7*]    5   2   r1  1
[1*]c1cc(OC)c(OC)cc1[7*]    6   2   r1  1
[1*]c1c([7*])ccc(OC)c1OC    7   2   r1  1
[1*]c1cc(Cl)cc(Cl)c1[7*]    8   2   r1  1
[1*]c1cc(F)ccc1[7*] 9   2   r1  1
spc = rdSynthonSpaceSearch.SynthonSpace()
spc.ReadTextFile('space1.txt')
spc.GetNumProducts()
1471295

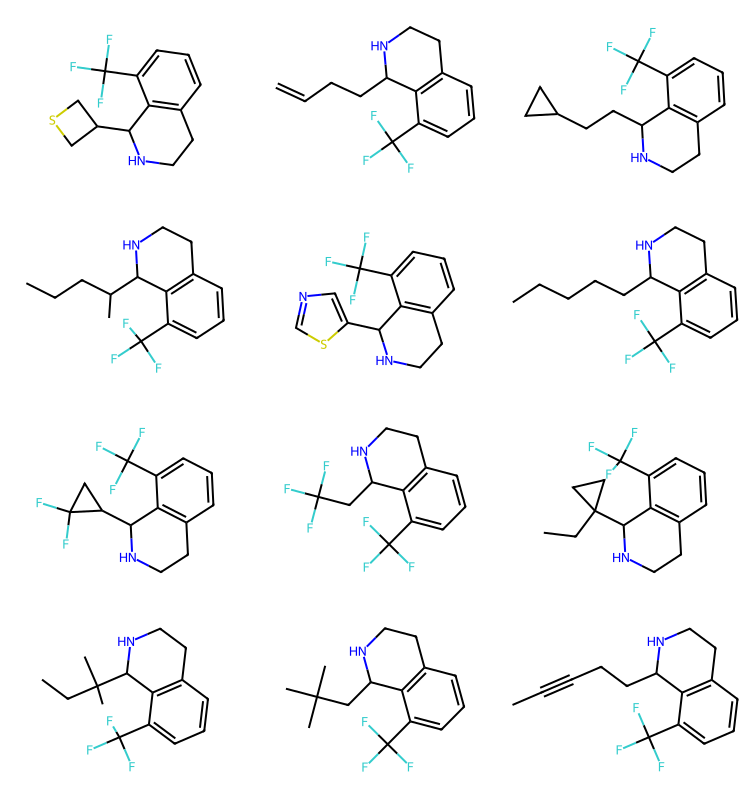

q2 = Chem.MolFromSmarts('')
q1 = Chem.MolFromSmarts('c1cccc(C(F)(F)F)c1C')
#q = Chem.MolFromSmarts('O=c1ncncc1')

params = rdSynthonSpaceSearch.SynthonSpaceSearchParams()
params.randomSample = True
params.randomSeed = 0xf00d

res = spc.SubstructureSearch(q1,params=params)
resMols = list(sorted(res.GetHitMolecules(),key=lambda x:x.GetNumHeavyAtoms()))
# resMols = res.GetHitMolecules()
print(f'{len(resMols)} results')
Draw.MolsToGridImage(resMols[:12],subImgSize=(250,200)) if len(resMols) else None
1000 results

Second reaction

The second reaction is Niementowski_quinazoline, also from the Hartenfeller paper. I’ve used this reaction before in a blog post showing how to extract information from reaction products.

This one is a bit trickier to encode.

Start with the reaction definition:

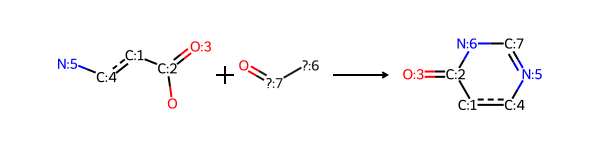

sma = '[c:1](-[C;$(C-c1ccccc1):2](=[OD1:3])-[OH1]):[c:4](-[NH2:5]).[N;!H0;!$(N-N);!$(N-C=N);!$(N(-C=O)-C=O):6]-[C;H1,$(C-[#6]):7]=[OD1]>>[c:4]2:[c:1]-[C:2](=[O:3])-[N:6]-[C:7]=[N:5]-2'

rxn = rdChemReactions.ReactionFromSmarts(sma)
rxn

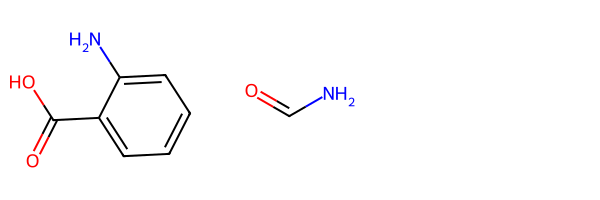

These are the two educts from the SI:

r1 = Chem.MolFromSmiles('c1c(C(=O)O)c(N)ccc1')
r2 = Chem.MolFromSmiles('C(=O)N')
Draw.MolsToGridImage((r1,r2))

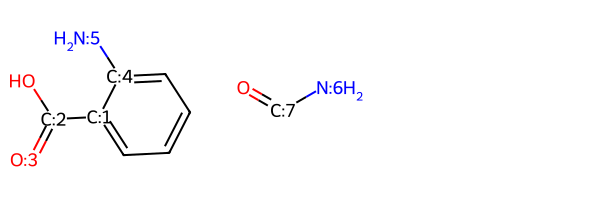

Here are the educts with atom map info:

r_queries = [rxn.GetReactantTemplate(x) for x in range(rxn.GetNumReactantTemplates())]

for r,q in zip([r1,r2],r_queries):
    match = r.GetSubstructMatch(q)
    assert match
    for i,midx in enumerate(match):
        mnum = q.GetAtomWithIdx(i).GetAtomMapNum()
        if mnum:
            r.GetAtomWithIdx(midx).SetAtomMapNum(mnum)
Draw.MolsToGridImage((r1,r2))

#-----

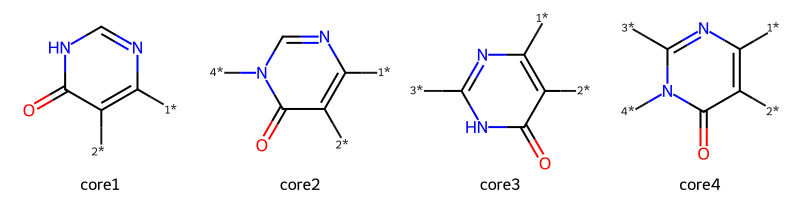

# Educt 2 is a primary amine
#   core1: no substituent on educt 2 carbon
core1 = Chem.MolFromSmiles('O=C1-N-C=N-C([1*]):C1[2*]',sanitize=True)
#   core3: educt2 has a substituent on the carbon
core3 = Chem.MolFromSmiles('O=C1-N-C([3*])=N-C([1*]):C1[2*]',sanitize=True)

# Educt 2 is a secondary amine
#   core2: no substituent on educt 2 carbon
core2 = Chem.MolFromSmiles('O=C1-N([4*])-C=N-C([1*]):C1[2*]',sanitize=True)
#   core4: educt2 has a substituent on the carbon
core4 = Chem.MolFromSmiles('O=C1-N([4*])-C([3*])=N-C([1*]):C1[2*]',sanitize=True)

Draw.MolsToGridImage([core1,core2,core3,core4],legends=['core1','core2','core3','core4'],molsPerRow=4)

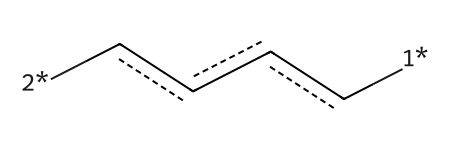

r1_prep = rdChemReactions.ReactionFromSmarts('[c:1]1(-[C:2](=[OD1:3])-[OH1]):[c:4](-[NH2:5])[c:6][c:7][c:8][c:9]1\
>>[2*][c:6][c:7][c:8][c:9][1*]')
p = r1_prep.RunReactant(r1,0)
[05:23:12] mapped atoms in the reactants were not mapped in the products.
  unmapped numbers are: 1 2 3 4 5
p[0][0]

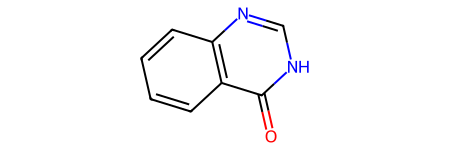

Make sure we form the correct ring:

ps = Chem.MolzipParams()
ps.label = Chem.MolzipLabel.Isotope
tm = Chem.molzip(core1,p[0][0],ps)
tm

Now do the preparation reactions for R2, taking the four scenarios into account:

r2_prep1 = rdChemReactions.ReactionFromSmarts('[NH2;!$(N-N);!$(N-C=N);!$(N(-C=O)-C=O):6]-[CH1:7]=[OD1]\
>>')
r2_prep3 = rdChemReactions.ReactionFromSmarts('[NH2;!$(N-N);!$(N-C=N);!$(N(-C=O)-C=O):6]-[C:7](-[#6:3])=[OD1]\
>>[3*][#6:3]')
r2_prep2 = rdChemReactions.ReactionFromSmarts('[*:8][NH1;!$(N-N);!$(N-C=N);!$(N(-C=O)-C=O):6]-[CH1:7]=[OD1]\
>>[4*][*:8]')
r2_prep4 = rdChemReactions.ReactionFromSmarts('[*:8][NH1;!$(N-N);!$(N-C=N);!$(N(-C=O)-C=O):6]-[C;R0:7](-[#6:3])=[OD1]\
>>([4*][*:8].[3*][*:7])')
possibles = [(core1,(r1_prep,r2_prep1)),(core2,(r1_prep,r2_prep2)),
             (core3,(r1_prep,r2_prep3)),(core4,(r1_prep,r2_prep4))]

Create the synthon space:

with open('./space2.txt','w+') as outf:
    nextRxn,nextIdx = enumerate_synthons(possibles,outf)


!head space2.txt
1 0 189 2
     188
2 0 189 189
     375
2 1 8173 375
[05:38:56] mapped atoms in the reactants were not mapped in the products.
  unmapped numbers are: 6 7
     383
3 0 189 384
     570
3 1 8173 570
[05:38:57] mapped atoms in the reactants were not mapped in the products.
  unmapped numbers are: 6 7
     1690
4 0 189 1691
     1877
4 1 8173 1877
[05:38:57] mapped atoms in the reactants were not mapped in the products.
  unmapped numbers are: 6 3
     3769
SMILES  synton_id   synton# reaction_id release
[1*]c1nc[nH]c(=O)c1[2*] 1   1   r1  1
[1*]ccc1c([2*])C(=O)c2ccccc2C1=O    2   2   r1  1
[1*]cc(Cl)cc([2*])Cl    3   2   r1  1
[1*]ccc(c[2*])C(F)(F)F  4   2   r1  1
[1*]ccc(Cl)c[2*]    5   2   r1  1
[1*]cc1ccccc1c[2*]  6   2   r1  1
[1*]cc(OC)c(c[2*])OC    7   2   r1  1
[1*]cc(cc[2*])S(=O)(=O)Nc1ccccc1OC  8   2   r1  1
[1*]cc(cc[2*])S(=O)(=O)Nc1ccc(OC)cc1    9   2   r1  1

Read it in

spc = rdSynthonSpaceSearch.SynthonSpace()
spc.ReadTextFile('space2.txt')
spc.GetNumProducts()
561906

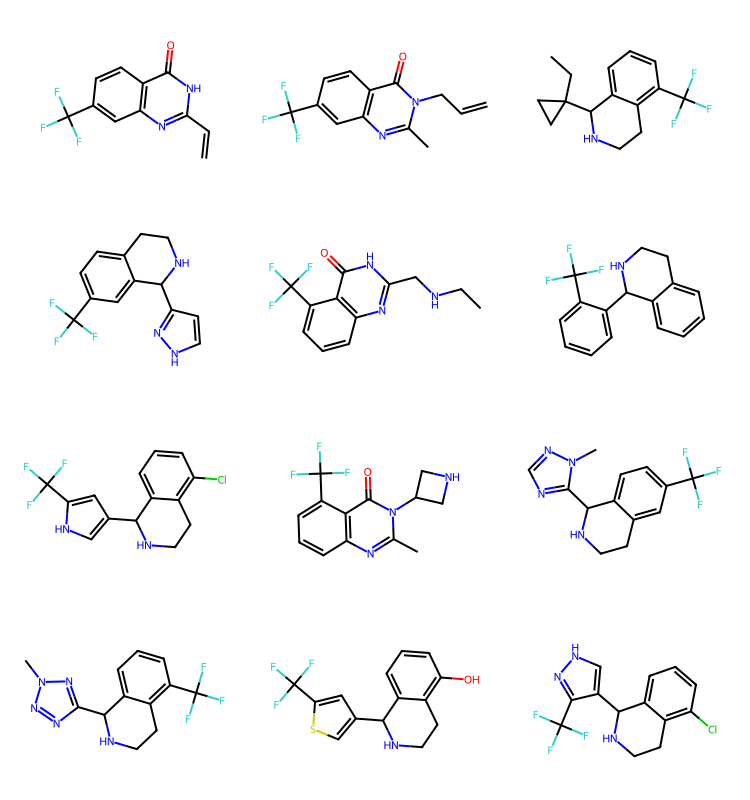

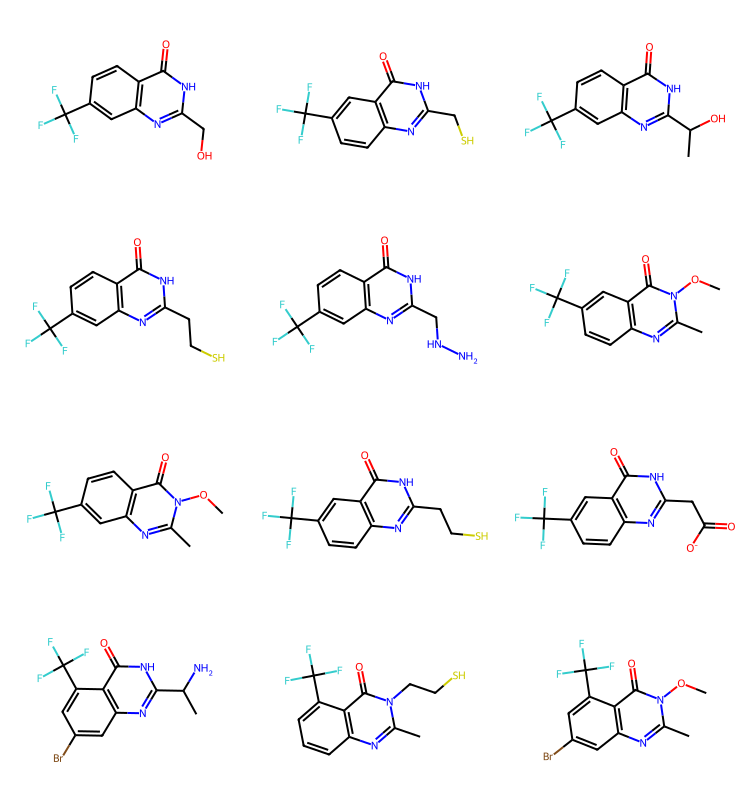

Search

q2 = Chem.MolFromSmarts('cC(F)(F)F')
params = rdSynthonSpaceSearch.SynthonSpaceSearchParams()
params.randomSample = True
params.randomSeed = 0xf00d

res = spc.SubstructureSearch(q2,params=params)
resMols = list(sorted(res.GetHitMolecules(),key=lambda x:x.GetNumHeavyAtoms()))
# resMols = res.GetHitMolecules()
print(f'{len(resMols)} results')
Draw.MolsToGridImage(resMols[:12],subImgSize=(250,200)) if len(resMols) else None
1000 results

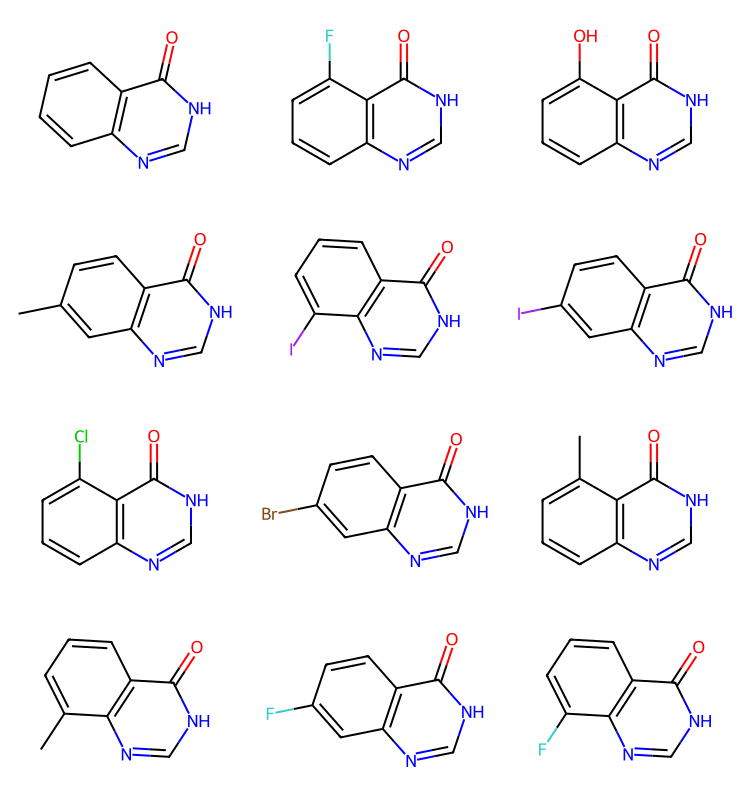

We have results here for cores 2-4, but none for core 1. Let’s confirm that there are core1 results in the set

q2 = Chem.MolFromSmarts('[#6](=O)@[#7H1]@[#6H1]@[#7]')
params = rdSynthonSpaceSearch.SynthonSpaceSearchParams()
params.randomSample = True
params.randomSeed = 0xf00d

res = spc.SubstructureSearch(q2,params=params)
resMols = list(sorted(res.GetHitMolecules(),key=lambda x:x.GetNumHeavyAtoms()))
# resMols = res.GetHitMolecules()
print(f'{len(resMols)} results')
Draw.MolsToGridImage(resMols[:12],subImgSize=(250,200)) if len(resMols) else None
[05:41:48] Complex queries can be slow.
186 results

Combine the two reaction spaces

We now add these synthons to the other space. We could do this by sequentially enumerating the spaces into the same output file, but it’s quicker to re-enumerate the second space onto the bottom of the output file from the first one:

!cp space1.txt combined.txt
!tail combined.txt
[11*]c1ccnn1-c1cccnc1   4768    3   r1  1
[11*]C1CC2(C1)CC(OC)C2  4769    3   r1  1
[11*]c1c(Cl)cnc(F)c1Cl  4770    3   r1  1
[11*]c1cc(Cl)c(C(=O)O)s1    4771    3   r1  1
[11*]C1COC2CC1C2    4772    3   r1  1
[11*]C12C3CCC(CC31)C2(F)F   4773    3   r1  1
[11*]c1ccc(C(F)(F)C(F)(F)F)s1   4774    3   r1  1
[11*]C12C3CC(CC31)C2NC(=O)OC(C)(C)C 4775    3   r1  1
[11*]C1OCCOC1(C)C   4776    3   r1  1
[11*]c1cc(C)cc(C(F)F)c1 4777    3   r1  1

Now re-enumerate the second space, start the synthon IDs at 4778 and the reaction IDs at 2:

with open('combined.txt','a') as outf:
    enumerate_synthons(possibles,outf,writeHeader=False,nWritten=4778,startIdx=2)
spc = rdSynthonSpaceSearch.SynthonSpace()
spc.ReadTextFile('combined.txt')
spc.GetNumProducts()
2 0 189 4779
     4965
3 0 189 4966
     5152
3 1 8173 5152
     5160
4 0 189 5161
     5347
4 1 8173 5347
     6467
5 0 189 6468
     6654
5 1 8173 6654
     8546
5965799
!tail combined.txt
[3*]C.[4*]CC1(N)CCC1    8536    3   r5  1
[3*]C.[4*]C1CCCCC1CN    8537    3   r5  1
[3*]C.[4*]CC1(N)CCCCC1  8538    3   r5  1
[3*]C.[4*]CC1(N)CCCC1   8539    3   r5  1
[3*]C.[4*]C1CC(N)C12CCC2    8540    3   r5  1
[3*]C.[4*]C1CCOCC1N 8541    3   r5  1
[3*]C.[4*]CC(N)c1ccccc1OC   8542    3   r5  1
[3*]C.[4*]C(CN)C(C)(C)C 8543    3   r5  1
[3*]C.[4*]C1Cc2ccccc2C1N    8544    3   r5  1
[3*]C.[4*]C1CC2(C1)CC(N)C2  8545    3   r5  1

Verify that searches return results from both spaces:

q2 = Chem.MolFromSmarts('cC(F)(F)F')
params = rdSynthonSpaceSearch.SynthonSpaceSearchParams()
params.randomSample = True
params.randomSeed = 0xf00d

res = spc.SubstructureSearch(q2,params=params)
resMols = list(sorted(res.GetHitMolecules(),key=lambda x:x.GetNumHeavyAtoms()))
# resMols = res.GetHitMolecules()
print(f'{len(resMols)} results')
Draw.MolsToGridImage(resMols[:12],subImgSize=(250,200)) if len(resMols) else None
1000 results

Reaction 3

For the last example, I’ll add the reaction definition for spiro chromanone from the Hartenfeller paper. This one is fun because it forms a spiro linkage.

sma = '[c:1](-[C;$(C-c1ccccc1):2](=[OD1:3])-[CH3:4]):[c:5](-[OH1:6]).[C;$(C1-[CH2]-[CH2]-[N,C]-[CH2]-[CH2]-1):7](=[OD1])>>[O:6]1-[c:5]:[c:1]-[C:2](=[OD1:3])-[C:4]-[C:7]-1'

rxn = rdChemReactions.ReactionFromSmarts(sma)
rxn

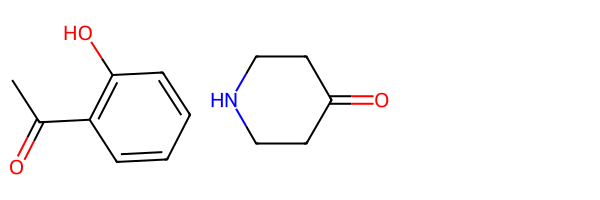

These are the two educts from the SI:

r1 = Chem.MolFromSmiles('c1cc(C(=O)C)c(O)cc1')
r2 = Chem.MolFromSmiles('C1(=O)CCNCC1')
Draw.MolsToGridImage((r1,r2))

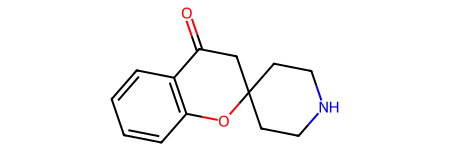

Here’s what the prototype product looks like:

p = rxn.RunReactants([r1,r2])
p[0][0]

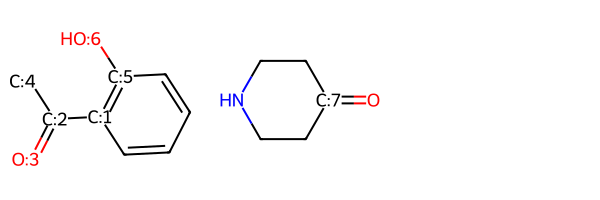

Here are the educts with atom map info:

r_queries = [rxn.GetReactantTemplate(x) for x in range(rxn.GetNumReactantTemplates())]

for r,q in zip([r1,r2],r_queries):
    match = r.GetSubstructMatch(q)
    assert match
    for i,midx in enumerate(match):
        mnum = q.GetAtomWithIdx(i).GetAtomMapNum()
        if mnum:
            r.GetAtomWithIdx(midx).SetAtomMapNum(mnum)
Draw.MolsToGridImage((r1,r2))

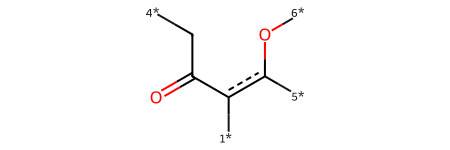

core = Chem.MolFromSmiles('O=C(-[C][4*])c([1*]):c([5*])[O][6*]',sanitize=False)
core

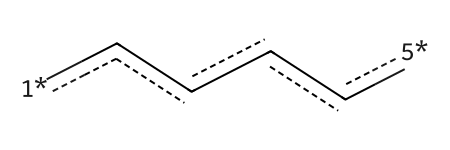

r1_prep = rdChemReactions.ReactionFromSmarts('[c:1]1(-[C:2](=[OD1:3])-[CH3:4]):[c:5](-[OH1:6]):[c:7]:[c:8]:[c:9]:[c:10]1\
>>[*1]:[c:7]:[c:8]:[c:9]:[c:10]:[5*]')
p1 = r1_prep.RunReactant(r1,0)
p1[0][0]
[06:13:20] mapped atoms in the reactants were not mapped in the products.
  unmapped numbers are: 1 2 3 4 5 6

'[C;$(C1-[CH2]-[CH2]-[N,C]-[CH2]-[CH2]-1):7](=[OD1])'

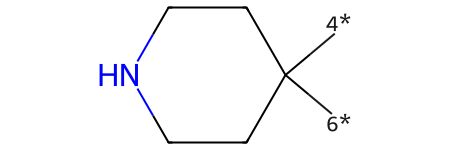

r2_prep = rdChemReactions.ReactionFromSmarts('O=[C:11]1-[CH2:12]-[CH2:13]-[N,C:14]-[CH2:15]-[CH2:16]-1\
>>[4*][C:11]1([6*])-[CH2:12]-[CH2:13]-[N,C:14]-[CH2:15]-[CH2:16]-1')
p2 = r2_prep.RunReactant(r2,0)
p2[0][0]

Make sure we form the correct ring:

tm = Chem.RWMol(core)
tm.InsertMol(p1[0][0])
tm.InsertMol(p2[0][0])
ps = Chem.MolzipParams()
ps.label = Chem.MolzipLabel.Isotope
tm = Chem.molzip(tm,ps)
tm

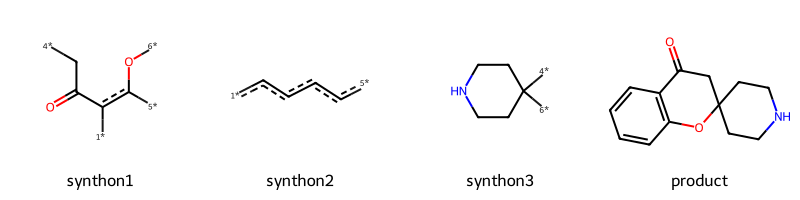

Draw.MolsToGridImage([core,p1[0][0],p2[0][0],tm],legends=['synthon1','synthon2','synthon3','product'],molsPerRow=4)

possibles = [(core,(r1_prep,r2_prep))]

Create the synthon space:

with open('./space3.txt','w+') as outf:
    nextRxn,nextIdx = enumerate_synthons(possibles,outf)


!head space2.txt
1 0 58 2
     60
1 1 241 60
     301
SMILES  synton_id   synton# reaction_id release
[1*]c1nc[nH]c(=O)c1[2*] 1   1   r1  1
[1*]ccc1c([2*])C(=O)c2ccccc2C1=O    2   2   r1  1
[1*]cc(Cl)cc([2*])Cl    3   2   r1  1
[1*]ccc(c[2*])C(F)(F)F  4   2   r1  1
[1*]ccc(Cl)c[2*]    5   2   r1  1
[1*]cc1ccccc1c[2*]  6   2   r1  1
[1*]cc(OC)c(c[2*])OC    7   2   r1  1
[1*]cc(cc[2*])S(=O)(=O)Nc1ccccc1OC  8   2   r1  1
[1*]cc(cc[2*])S(=O)(=O)Nc1ccc(OC)cc1    9   2   r1  1

Read it in

spc = rdSynthonSpaceSearch.SynthonSpace()
spc.ReadTextFile('space3.txt')
spc.GetNumProducts()
13978

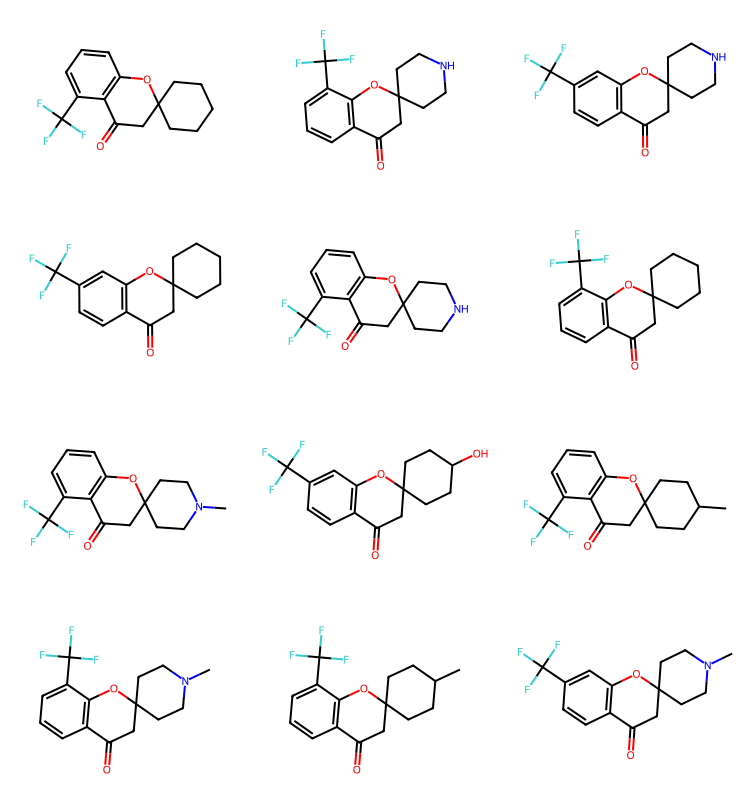

Search

q2 = Chem.MolFromSmarts('cC(F)(F)F')
params = rdSynthonSpaceSearch.SynthonSpaceSearchParams()
params.randomSample = True
params.randomSeed = 0xf00d

res = spc.SubstructureSearch(q2,params=params)
resMols = list(sorted(res.GetHitMolecules(),key=lambda x:x.GetNumHeavyAtoms()))
# resMols = res.GetHitMolecules()
print(f'{len(resMols)} results')
Draw.MolsToGridImage(resMols[:12],subImgSize=(250,200)) if len(resMols) else None
778 results

And combine it with the other two:

!tail combined.txt
[3*]C.[4*]CC1(N)CCC1    8536    3   r5  1
[3*]C.[4*]C1CCCCC1CN    8537    3   r5  1
[3*]C.[4*]CC1(N)CCCCC1  8538    3   r5  1
[3*]C.[4*]CC1(N)CCCC1   8539    3   r5  1
[3*]C.[4*]C1CC(N)C12CCC2    8540    3   r5  1
[3*]C.[4*]C1CCOCC1N 8541    3   r5  1
[3*]C.[4*]CC(N)c1ccccc1OC   8542    3   r5  1
[3*]C.[4*]C(CN)C(C)(C)C 8543    3   r5  1
[3*]C.[4*]C1Cc2ccccc2C1N    8544    3   r5  1
[3*]C.[4*]C1CC2(C1)CC(N)C2  8545    3   r5  1
with open('combined.txt','a') as outf:
    enumerate_synthons(possibles,outf,writeHeader=False,nWritten=8546,startIdx=6)
spc = rdSynthonSpaceSearch.SynthonSpace()
spc.ReadTextFile('combined.txt')
print(spc.GetNumProducts())

!tail combined.txt
6 0 58 8547
     8605
6 1 241 8605
     8846
6077623
[4*]C1([6*])CCC(=C(F)F)CC1  8836    3   r6  1
[4*]C1([6*])CCN(S(=O)(=O)F)CC1  8837    3   r6  1
[4*]C1([6*])CCN(c2cc(=O)[nH]cn2)CC1 8838    3   r6  1
[4*]C1([6*])CCN(OCc2ccc(Cl)cc2)CC1  8839    3   r6  1
[4*]C1([6*])CCC(N2CCCC2)CC1 8840    3   r6  1
[4*]C1([6*])CCC(N2CCOCC2)CC1    8841    3   r6  1
[4*]C1([6*])CCN(c2cc[nH]c(=O)c2)CC1 8842    3   r6  1
[4*]C1([6*])CCC([N+](=O)[O-])CC1    8843    3   r6  1
[4*]C1([6*])CCC2(CC1)CC2C(=O)OC 8844    3   r6  1
[4*]C1([6*])CCC2(CCC(CBr)O2)CC1 8845    3   r6  1

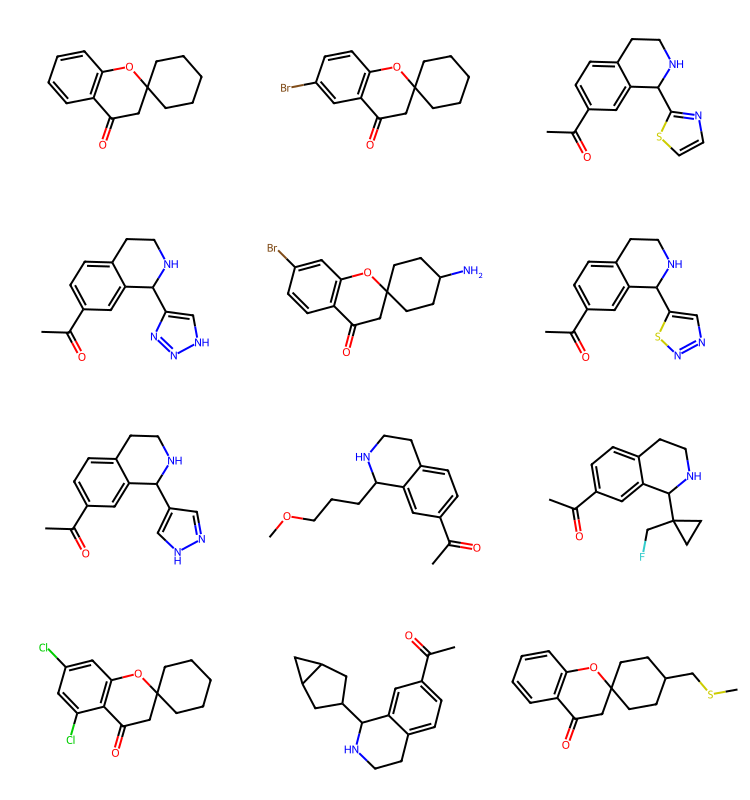

Do a search to be sure we get results from multiple reactions:

q2 = Chem.MolFromSmarts('cC(=O)C')
params = rdSynthonSpaceSearch.SynthonSpaceSearchParams()
params.randomSample = True
params.randomSeed = 0xf00d

res = spc.SubstructureSearch(q2,params=params)
resMols = list(sorted(res.GetHitMolecules(),key=lambda x:x.GetNumHeavyAtoms()))
# resMols = res.GetHitMolecules()
print(f'{len(resMols)} results')
Draw.MolsToGridImage(resMols[:12],subImgSize=(250,200)) if len(resMols) else None
1000 results

There are many more reactions in the Hartenfeller paper, but I’m going to stop here.
